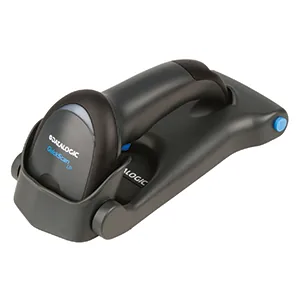

Quickscan QD2400
Barcode scanner
The QuickScan™ QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic’s well-known durability.
Quickscan QD2400 at a glance
Cordless Solution For Data Collection
Quickscan QD2400
The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.
Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.
The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.
Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.
- Dimensions
- 1.6″ x 3.6″ x 6.4″
- Weight
- 5.11 oz
- Color Options
- Black, White
- Interfaces Available
- USB
- Scan Method
- 2D Area Imager
- Decoding Capabilities
- Standard 1D and 2D barcodes
- Motion Tolerance
- 25 Inches Per Second
- Reading Angle
- Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (yaw): +/- 60°
- Contrast Ratio
- 25%
- Typical Depth of Field
- Density/Symbology Range 4.0 Mil Code 39 0.2″ to 5.9″ 13 Mil (100% UPC-A) 0.2″ to 13.8″ 6.6 Mil PDF417 0.4″ to 5.1″ 10 Mil Data Matrix 0.4″ to 5.1″
- Density/Symbology
- Range
- 4.0 Mil Code 39
- 0.2″ to 5.9″
- 13 Mil (100% UPC-A)
- 0.2″ to 13.8″
- 6.6 Mil PDF417
- 0.4″ to 5.1″
- 10 Mil Data Matrix
- 0.4″ to 5.1″
- Indicators
- Beep, LED, Green Spot
- Auto Sense Mode
- Available
- Drivers License Data Parsing
- Not Available
- Healthcare Specific Model
- Not Available
- Image Capture
- Not Available
- Mobile Phone Scanning Capabilities
- Available
- Drop Specification
- Withstands 5-foot drops to concrete
- Operating Temperature
- 32° to 122° F
- Environmental Sealing
- IP42
- Ambient Light (Max)
- 86,000 lux

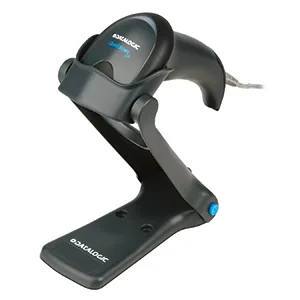

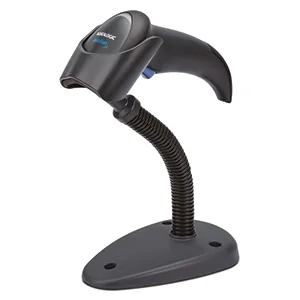

- Stand
- Presentation Stand Available
- Warranty
- 5 Years
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
