Powerscan 9501
Performance without compromise
The 9501 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.
Powerscan 9501 at a glance
Reads Any 1D And 2D Codes
Powerscan 9501

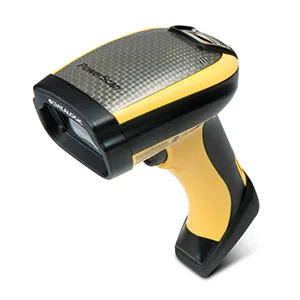

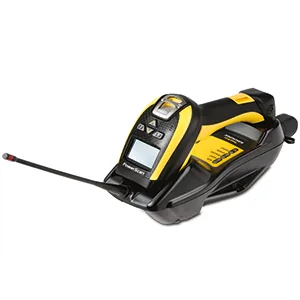

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.
The PowerScan 9501 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
Scanner
Input Device
Barcode
Networking
Battery
Miscellaneous
Service & Support
Service & Support Details
Environmental Parameters
- Dimensions
- & Weight
- Shock
- & Vibration Tolerance
- Type : Barcode scanner
- Form Factor : Portable
- Scan Mode : Single-pass
- Scan Element Type : LED
- Connectivity Technology : Wireless
- TTL Decoding : Decoded
- OK Notification : Beeper, LED indicator
- Interface : RF(910 MHz)
- Barcodes : MaxiCode, Postnet, GS1 DataBar Stacked, QR code, Royal Mail, Japanese Post, Aztec code, RM4SCC, UPC A Composite, Kix (Netherlands) Post, Micro QR code, GS1 DataBar Composites, MicroPDF417, MacroPDF417, Intelligent Mail Barcode, Australian Post, UPC E Composite, China Han Xin Code, Swedish Post, China Post, GS1 DataBar Stacked Omnidirectional, GS1 DataBar, PDF417, PLANET, Data Matrix, Portuguese Post, EAN/JAN, GS1 DataBar Expanded Stacked
- Print Contrast Signal (PCS) : 15%
- Max Working Distance : 66 ft
- Skew (Degrees) : 60
- Pitch (Degrees) : 80
- Minimum Bar Width : 3 milli-inch
- Features : Datalogic STAR Cordless System, ESD (electrostatic discharge) safe, Autofocus, Triggered, Datalogic Three Green Lights (3GL)
- Wireless Connectivity : RF
- Installed Qty : 1
- Technology : Lithium ion
- Color : Black, Yellow
- Color Category : Black, Yellow
- Compliant Standards : China RoHS, EU RoHS, IP65, IEC 62471, EN 60825-1 Class 2, CDRH Class II
- Width : 2.9 inch
- Depth : 4.3 inch
- Height : 8.3 inch
- Weight : 16.22 ounce
- Type : 3-year warranty
- Service & Support : Limited warranty – 3 years
- Drop Specification : 6.5 ft to concrete
- Min Operating Temperature : -4 degree Fahrenheit
- Max Operating Temperature : 122 degree Fahrenheit
- Humidity Range Operating : 0 – 95% (non-condensing)
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
