Xenon Extreme Performance

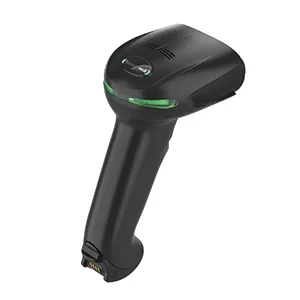

Xenon XP 1950g

Engineered to 50 drops at 1.8 m (6 ft) and 2,000 tumbles at 0.5 m (1.6 ft), and with an IP41 ingress rating for water and dust, the Xenon XP 1950g scanner delivers class-leading durability. This significantly reduces scanner downtime and service costs, leading to a longer lifecycle and a lower total cost of ownership.

Designed for retail environments that demand high-accuracy scanning, whether at a distance, or even on damaged barcodes, the Xenon XP 1950g scanner reduces strain on the associate – decreasing the need to bend to reach barcodes on the bottom shelf or bottom of the basket. The Xenon XP 1950g is available in Black or Lyric White models to match the scanner to your environment, and an available vibration mode ensures your associates get scanner feedback regardless of their surroundings.

Mechanical/Electrical

Dimensions

99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in)

Weight

160 g (5.6 oz)

Input Voltage

4.4V DC – 5.5V DC

Operating Power

2.5W (500 mA @ 5V DC)

Host System Interfaces

USB, Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX

User Indicators

Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (optional)

Environmental

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Humidity

0% to 95% relative humidity, non-condensing

Drop/Tumble

2,000 0.5 m (1.6 ft) tumbles (impacts), Engineered to withstand 50 1.8 m (6 ft) drops to concrete

Environmental Sealing

IP41

Light Levels

0 to 100,000 lux (9,290 foot-candles)

Scan Performance

Scan Pattern

Area Image (1280 x 800 pixel array)

Motion Tolerance

Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus

Scan Angle

SR: Horizontal: 48°; Vertical: 30° HD: Horizontal: 48°; Vertical: 30°

Roll, Pitch, Skew

±360°, ±45°, ±65°

Decode Capabilities

Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies Note: Decode capabilities dependent on configuration

Warranty

5 year factory warranty

Voyager XP 1472g

Cordless area-imaging scanner

Empower your cashiers to deliver on your mission and commitment to provide excellent customer service experiences with the Honeywell XenonTM Extreme Performance (XP) series. The Xenon XP 1952g scanner offers superior scan performance, easily capturing even the most difficult-to-read or damaged barcodes.

Engineered to 50 drops at 1.8 m (6 ft) and 2,000 tumbles at 0.5 m (1.6 ft), and with an IP41 ingress rating for water and dust, the Xenon XP 1952g scanner delivers class-leading durability. This significantly reduces scanner downtime and service costs, leading to a longer lifecycle and a lower total cost of ownership.

Freedom of movement around POS terminals, conveyors, and customers is a continued challenge for today’s retail associates. As more technology is packed into the streamlined modern-day POS station, free space is at a premium. The Xenon XP 1952g cordless scanner ensures that your associates’ attention is kept on maximizing customer experience by eliminating wasted time managing cables.

Designed for stores that need high-accuracy scanning, even from a distance, the Xenon XP 1952g scanner reduces strain on the associate – decreasing the need to bend to reach barcodes on the bottom shelf or bottom of the basket.

Mechanical/Electrical

Dimensions

Scanner: 99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in) Presentation Base: 132 mm x 101 mm x 81 mm (5.2 in x 4.0 in x 3.2 in) Desktop/Wall Mount Base: 231 mm x 89 mm x 83 mm (9.1 in x 3.5 in x 3.3 in)

Weight

Scanner: 220 g (7.8 oz) Presentation Base: 179 g (6.3 oz) Desktop/Wall Mount Base: 260 g (9.2 oz)

Operating Power

2.5 W (500 mA @ 5V DC)

Non-Charging Power

0.75 W (150 mA @ 5V DC)

Host System Interfaces

USB, Keyboard Wedge, RS-232, IBM 46xx (RS485)

Environmental

Operating Temperature

-20°C to 40°C (-4°F to 104°F)

Storage Temperature

-40°C to 60°C (-40°F to 140°F)

Humidity

5% to 95% relative humidity, non-condensing

Drop/Tumble

Designed to withstand multiple 1.5 m (5 ́) drop

Environmental Sealing

Sealed to resist airborne particulate contaminants

Light Levels

4842 Lux

Scan Performance

Scan Pattern

Omnidirectional: 5 fields of 4 parallel lines; Button activated single line

Scan Speed

Omnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per second

Print Contrast

35% minimum reflectance difference

Pitch, Skew

60°, 60°

Decode Capabilities

Reads standard 1D and GS1 DataBar symbologies

Warranty

3 year factory warranty
