Gryphon 4500
Hand held scanner
The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as Dot codes. A dedicated version with red illumination optics also supports Digital Watermarking.
Gryphon 4500 at a glance
Gryphon 4500

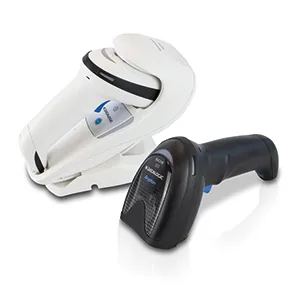

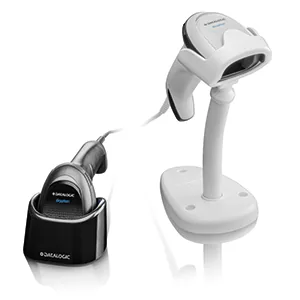

Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into ‘hand held’ mode when the device is picked up. When placed back into the cradle, it seamlessly returns to ‘stand’ mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging.
The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System (GM model).
One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Reading indicators Beeper (Adjustable Tone); Datalogic Three Green Lights (3GL) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LED
- OUTSTANDING PERFORMANCE, VERSATILITY
- & DURABILITY
- HAND HELD SCANNER
- The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
- DECODING CAPABILITY
- 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
- 2D Codes
- Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
- Stacked Codes
- EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
- Postal Codes
- Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)/span>
- Digital Watermarking
- Digimarc Barcodes
- READING PERFORMANCE
- Image Capture: Graphic Formats: BMP, JPEG, TIFF, Greyscale: 256, 16, 2
- Image Sensor
- 1 Megapixel: 1280 x 800 pixels
- Light source Aiming
- Red Laser 650 mm Illumination: Warm White; Hyper Red LED for Digimarc
- Reading angles Pitch
- +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°
- ENVIRONMENTAL
- Drop resistance Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
- Particulate and Water Sealing IP52 Temperature Operating
- 0 to 50 °C / 32 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F
- Motion tolerance 35 IPS
- Print contrast ratio (minimum) 15%
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
