Heron 3400
Performance without compromise
Heron 3400 at a glance
Reads Any 1D And 2D Codes
Heron 3400

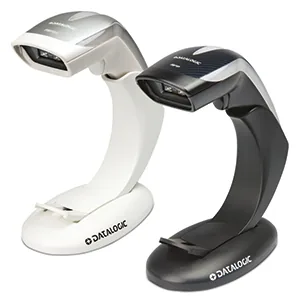

The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand. The Heron HD3430 area imager provides outstanding 2D reading performance and image capture capability. It also includes the patented ‘Green Spot’ technology for good-read feedback. User comfort is maximized with the Heron HD3430 white illumination and the highly visible 4-Dot aimer defines a precise reading zone. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
- Dimensions
- 6.0 x 6.0 x 2.7 in 15.2 x 15.3 x 6.8 cm
- Weight
- 5.3 oz 150.0 g
- Color Options
- Black White Other Options, Please Call
- Interfaces Available
- Keyboard Wedge OEM (IBM) USB RS-232 USB
- Scan Method
- Area Imager
- Decoding Capabilities
- Standard 1D, 2D, PDF, & Stacked Codes
- Mobility/Range
- Corded
- Motion Tolerance
- 25 IPS
- Reading Angle
- Pitch: +/- 65°; Roll (Tilt): Up to +/- 360° Skew (Yaw): +/- 60°
- Print Contrast (Min)
- 15%
- Typical Depth of Field
- Code 39: 5 mils: 3.5 to 20.0 cm / 1.3 to 7.8 i EAN-13: 13 mils: 3.0 to 40.0 cm / 1.2 to 15.7 in Data Matrix: 15 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in
- Indicators
- Beepers, Polyphonic Datalogic ‘Green Spot Good Read Feedback Product side and upper illumination Good Read LED
- Auto Sense Mode
- AutoSense Stand Included
- Image Capture
- Graphic Formats: BMP, JPEG, TIFF Greyscale: 256, 16, 2
- Drivers License Data Parsing
- No
- Mobile Phone Scanning Capabilites
- Yes
- Healthcare Specific Model
- No
- Operating Temperature
- 32 to 122 °F 0 to 50 °C
- Drop Specification
- 5 ft to concrete
- Environmental Sealing
- IP40
- Ambient Light (Max)
- 0 – 100,000 lux
- Stand
- AutoSense Stand Included
- Warranty
- 5 Year Factory
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
