Chainway Mobile Computers

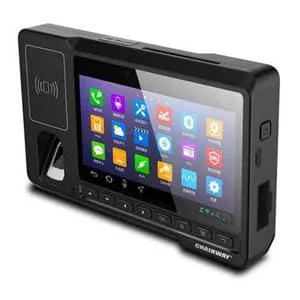

V600 Vehicle Computer

Vehicle-mounted computer

Every day, over three million workers use an MC9000 Series mobile computer to streamline processes in warehouses and manufacturing plants all over the world. But now you need to handle and ship more orders every day, faster than ever. Introducing the mobile computer that can get it done, the MC9300 — the next evolution of the world’s best-selling and most trusted enterprise mobile computer. Your workers get the ultimate in simplicity with Android, an operating system your workers already know well, a larger advanced touch display and more. Handle all of your applications with the ultimate in processing power and memory. New data capture capabilities include optional front and back cameras, extraordinary scan ranges and superior direct part mark (DPM) capture. The new battery runs twice as long as the MC9200 on a single charge. It’s the most rugged MC9000 Series ever created, ready to outlast virtually every device in its class in any environment — including the freezer. New Mobility DNA solutions make device, OS security and battery management easy, while delivering better-than-ever robust wireless connections. And since you can run your existing TE apps right out of the box, migrating to Android couldn’t be easier.

USED FOR Inventory Management Supply-Line Replenishment Safety Testing Quality Control Audits Parts Tracking Receiving/Put-away Returns Processing Price Audits/Changes EDI Transactions/Picking Cross Dock Operations

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.
Specifications

V600 Vehicle Computer at a glance

Physical Characteristics

Dimensions
188mm x 115mm x 29mm / 7.40 x 4.53 x 1.14in
Display
5.5″ 720P TFT-LCD capacitive touch panel 16.7M colors, adjustable backlight brightness
Expansion Slot
1 SIM, 1 TF, 1 SD, 1 HF slot
Interfaces
Micro USB, USB type A, OTG
Audio
Speaker, microphone; supporting voice calls
Input Mode
Touch input
Keypad
8 function keys
Sensors
Gravity sensor, gyroscope

User Environment

Input Voltage
9V~60V
Operating Temp.
-4°F to 122°F / -20°C to 50°C
Storage Temp.
-40°F to 158°F / -40°C to 70°C
Humidity
5%RH – 95%RH non condensing
ESD
±8KV air discharge, ±4KV conductive discharge

Developing Environment

Operating System
Android 5.1
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse/Android Studio

Performance

Option 1
CPU: Qualcomm 1.3 GHz quad-core RAM+ROM: 2GB+16GB
Option 2
CPU: Qualcomm 1.3 GHz quad-core RAM+ROM: 1GB+8GB
Expansion
Supports a total of 64GB by SD and TF cards

Communication

WLAN
IEEE802.11 b/g/n
WWAN (Europe)
2G: GPRS(900/1800MHz) 3G: WCDMA B1 B8 4G: FDD-LTE: B1 B3 B7 B8 B20
WWAN (America)
2G: GPRS(850/1900MHz) 3G: WCDMA B2 B5 4G: FDD-LTE: B2 B4 B5 B7 B17
WWAN (China)
2G: GPRS(850/900/1800/1800MHz) 3G: WCDMA : B1;CDMA EVDD: EVDD Rev.A800MHz;TD-SCDMA: B34, B39 4G: TDD-LTE: B38/B39/B40/B41,FDD-LTE: B1/B3
Bluetooth
Bluetooth 4.0
GNSS
GPS, A-GPS, BeiDou (optional)

Fingerprint

Memory
1,000 PCS fingerprints
Sensor
TCS2SS
Image Size (pixel)
256×288
Resolution (dpi)
508DPI
Note
*This function is optional

Barcode Scanning

Note
*Barcode scanning is alternative to fingerprint recognition
Note2
*This function is optional

Camera

Front Camera
GC 5MP autofocus camera
External Camera (optional)
Two-channel (with infrared lamp), taking photos and videos Resolution: 320 x 240, 640 x 480, 1280 x 720 Fps: YUY2: 720p/15fps, VGA/30fps, CIF/30fps MJPEG: 720p/30fps, VGA/60fps, CIF/60fps

HF RFID

HF
NXP
Frequency
13.56MHz
Protocol
ISO14443A/B,15693
Chips
1) MF1 card (S50/S70), MF0 (Ultra light),MF3 (Desfire D40/D41/D81), CPU_A card 2) CPU_B card 3) Others for customization

OBD

Protocol
OBDII, ISO9141-2, ISO14230(KWP) ISO15765(CANBUS) *This function is optional

Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
