C4050 Handheld Computer

Android-Based Rugged Mobile Computer

C4050 Handheld Computer

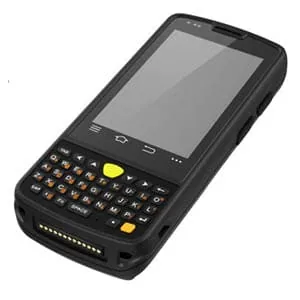

Chainway C4050 is an Android-based rugged Handheld Computer. With its fast 4G connectivity and powerful Qualcomm processor as well as the comprehensive data capture options, including LF/HF RFID and NFC reading, high-performance 1D/2D, infra-red and sensitive fingerprint scanning, you can find this easy-to-deploy device an exceptionally valuable helper for your workers to increase their efficiency and productivity.

Physical Characteristics

Dimensions

176mm x 76mm x 29mm/ 6.93 x 2.99 x 1.14in

Weight

319g/ 11.25oz

Display

4’’ WVGA (480*800), 16.7M colors

Touch Panel

Rugged capacitive touch panel

Power

Main battery: Li-ion, 3200mAh Pistol battery: Li-ion, 5200mAh (optional)

Expansion Slot

1 PSAM(ISO7816 Protocol), 1 SIM, 1 MicroSD(TF) slot

Interfaces

USB Micro-B

Audio

0.5W speaker, build-in microphone

Keypad

Numeric / Qwerty

Sensors

Light sensor, proximity sensor

User Environment

Operating Temp.

-4°F to 122°F / -20°C to 50°C

Storage Temp.

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH – 95%RH non condensing

Drop Specification

Multiple 1.2m/3.9ft drops to concrete across the operating temperature range

Tumble Specification

1000 x 0.5m/1.64ft falls at room temperature

Sealing

IP64

ESD

±15KV air discharge, ±8KV conductive discharge

Developing Environment

Operating System

Android 5.1

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU（1）

Qualcomm 1.3 GHz quad-core

RAM+ROM（1）

2GB+16GB

CPU（2）

Qualcomm 1 GHz quad-core

RAM+ROM（2）

1GB+8GB

Expansion

Supports up to 128 GB Micro SD card

Communication

WLAN

IEEE802.11 a/b/g/n

WWAN (Europe)

2G:GPRS(900/1800MHz) 3G:WCDMA B1、B8 4G:FDD-LTE:B1、B3、B7、B8、B20

WWAN (America)

2G: GPRS(850/1900MHz) 3G: WCDMA B1、B2、B5 4G: FDD- LTE: B2 B4 B7 B17

WWAN (China)

2G: GPRS(850/900/1800MHz) 3G:WCDMA: B1; CDMA EVDO:EVDO Rev.A800MHz;TD-SCDMA: B34, B39 4G: TDD-LTE: B38/B39/B40/B41;FDD-LTE: B1/B3

Bluetooth

Bluetooth 4.0

GPS

GPS, AGPS

Fingerprint

Functions

Fingerprint enrollment, match, storage etc.

Sensor

TCS1 / TCS2SS (Capacitive)

Image Size (pixel)

TCS1: 12.8×18; TCS2SS: 10.4×14.4

Sensing Area (mm)

TCS1: 256×360; TCS2SS: 208×288

Resolution (dpi)

508

Standard

TCS1: FIPS, STQC; TCS2SS: ISO

Note

*This function is optional

PSAM

Protocol

ISO7816 Protocol

Slots

1 PSAM slot

Note

*This function is optional

InfraRed

Wavelength

940nm

Frequency

38kHz

Range

> 4m

Protocol

DLT_645-2007

Note

*This function is optional

Barcode Scanning

1D Linear Scanner

Honeywell N4313 / Zebra SE965

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Imager Scanner

Zebra SE4500

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional

LF RFID

Frequency

125kHz, 134kHz (FDX-B / HDX)

Protocol

ISO11784/5, ISO18000-2

Chips

R/O ID card, eg EM4100/4200, TK4100 R/W ID card, eg EM4305/HITAG S Animal tags Others for customization

Range

3-8cm

Note

*This function is optional

Camera

Camera

8MP Autofocus with flash

Note

*This function is optional

NFC

Frequency

13.56MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc

Range

2-4cm

Note

*This function is optional

LF RFID (with external antenna)

Frequency

134kHz (FDX-B+HDX)

Protocol

ISO11784/5

Chips

Animal tags Others for customization

Range

3-12cm, external antenna 3-20cm, with a 75cm extension antenna

Note

*This function is optional

HF RFID

Frequency

13.56MHz

Protocol

ISO14443A/B, ISO15693

Chips

M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81) CPU_A card,CPU_B card ICODE II,TI2048,LRI64K Others for customization

Range

3-8cm

Note

*This function is optional
