Chainway Mobile Computers
C3000 Handheld Computer
Rugged and portable with high performance
Backed by ITSSA CareRepairs, hot swops and support for the life of the device.
Specifications
C3000 Handheld Computer at a glance
Dust And Water Proof Structure

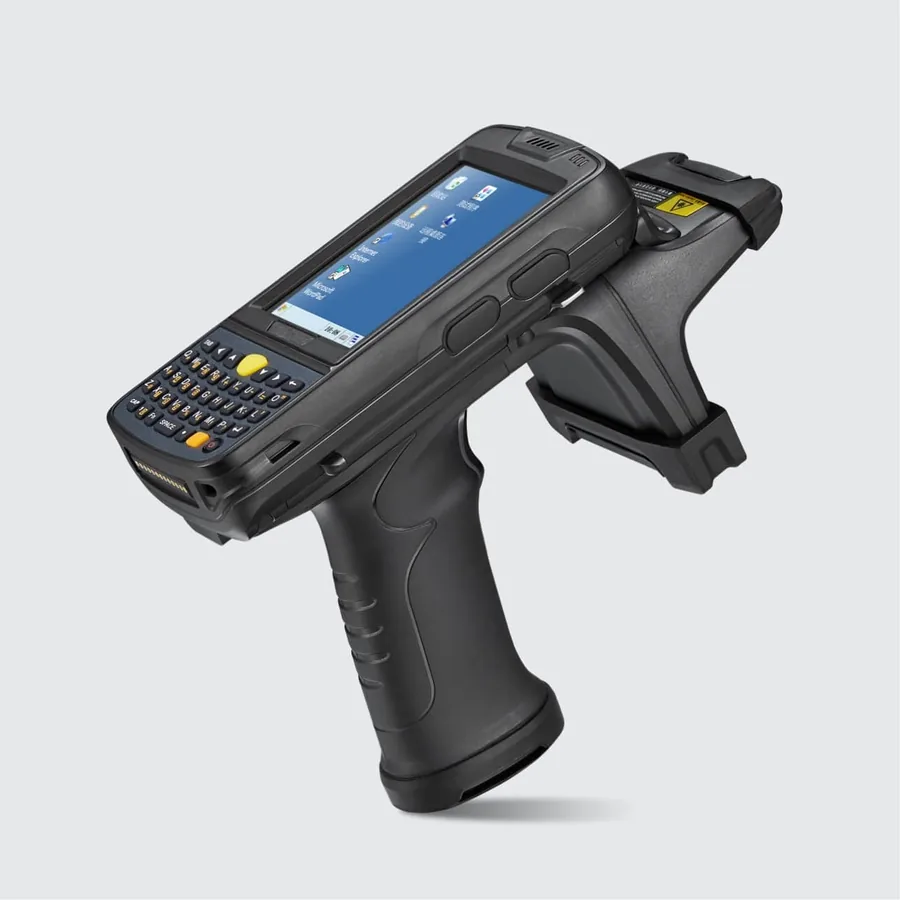

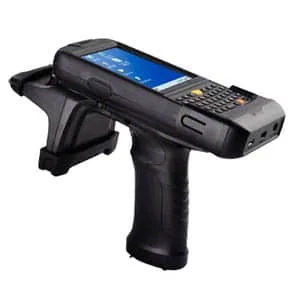

C3000 Handheld Computer
Physical Characteristics
- Dimensions
- 154mm x 77mm x 31mm/ 6.06 x 3.03 x 1.22in
- Weight
- 345g/ 12.17oz
- Display
- 3.5’’ QVGA (240*320), 6.5M colors
- Touch Panel
- Rugged resistive touch panel
- Power
- Main battery: Li-ion, 3200mAh Pistol battery: Li-ion, 5200mAh (Optional)
- Expansion Slot
- 1 MicroSD(TF)
- Interfaces
- MicroUSB(OTG)
- Audio
- 0.5W speaker
- Keypad
- Numeric / Qwerty
- INDUSTRIAL HANDHELD COMPUTER
User Environment
- Operating Temp.
- -4°F to 122°F / -20°C to 50°C
- Storage Temp.
- -40°F to 158°F / -40°C to 70°C
- Humidity
- 5%RH – 95%RH non condensing
- Drop Specification
- Multiple 1.5m drops to concrete across the operating temperature range
- Tumble Specification
- 1000 x 0.5m/1.64ft falls at room temperature
- Sealing
- IP65
Developing Environment
- Operating System
- Windows Embedded CE 6.0
- SDK
- Chainway Software Development Kit
- Language
- C++, C#, VB.NET
- Tool
- Visual Studio 2005/2008
Performance
- CPU
- Cortex-A8 800MHz
- RAM+ROM
- 256MB+4GB
- Expansion
- Supports up to 32GB Micro SD card
Communication
- WLAN
- IEEE802.11 a/b/g/n
- Bluetooth
- Bluetooth 2.0+EDR
Fingerprint
- Functions
- Fingerprint enrollment, match, storage etc.
- Sensor
- TCS1 / TCS2SS (Capacitive)
- Image Size (pixel)
- TCS1: 256×360; TCS2SS: 208×288
- Sensing Area (mm)
- TCS1: 12.8×18; TCS2SS: 10.4×14.4
- Resolution (dpi)
- 508
- Standard
- TCS1: FIPS, STQC; TCS2SS: ISO
- Note
- *This function is optional
Barcode Scanning
- 1D Linear Scanner
- Honeywell N4313 / Zebra SE965
- 1D Symbologies
- UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
- 2D Imager Scanner
- Zebra SE4500
- 2D Symbologies
- PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec;MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc
- Note
- *This function is optional
LF RFID
- Frequency
- 125kHz, 134kHz (FDX-B / HDX)
- Protocol
- ISO11784/5,ISO18000-2
- Chips
- R/O ID card, eg EM4100/4200, TK4100 R/W ID card, eg EM4305/HITAG S Animal tags Others for customization
- Range
- 3-8cm
- Note
- *This function is optional
Camera
- Camera
- 5MP Autofocus
LF RFID (with external antenna)
- Frequency
- 134kHz (FDX-B+HDX)
- Protocol
- ISO11784/5
- Chips
- Animal tags Others for customization
- Range
- 3-12cm, external antenna 3-20cm, with a 75cm extension antenna
- Note
- *This function is optional
HF RFID
- Frequency
- 13.56MHz
- Protocol
- ISO14443A/B,ISO15693
- Chips
- M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81) CPU_A card,CPU_B card ICODE II,TI2048,LRI64K Others for customization
- Range
- 3-8cm
- Note
- *This function is optional
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
