Chainway Mobile Computers

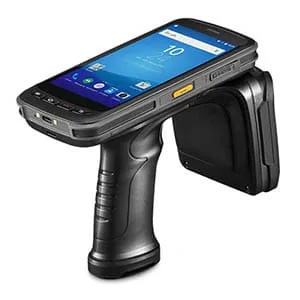

C72 UHF RFID Reader

Name: C72 UHF RFID Reader
Brand: Chainway

Professional uhf rfid reading & writing

Ask about this device Available to rent

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.

Specifications

C72 UHF RFID Reader at a glance

Dimensions: 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight: 654g / 23.07oz
Display: 5.2” IPS FHD 1920×1080
Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power: Main battery: Li-ion, rechargeable, 8000mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot: 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces: USB 2.0 Type-C, OTG, Octa-core version supports TypeC headphones
Audio: Speaker, 2 microphones
Keypad: 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors: Gravity sensor, light sensor, proximity sensor

Operating Temp.: 4°F to 122°F / -20°C to 50°C
Storage Temp.: -40°F to 158°F / -40°C to 70°C
Humidity: 5% RH – 95% RH non condensing
Drop Specification: Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification: 1000 x 0.5m/1.64ft falls at room temperature
Sealing: Host IP65 per IEC sealing specifications
ESD: ±15KV air discharge, ±6KV conductive discharge

WLAN: IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (China): 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Europe): 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHZ 4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America): 2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHZ 4G: B2, B4, B7, B12, B17
WWAN (Others): Depending on the country’s ISP
Bluetooth: Bluetooth 4.0, BLE
GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna
Note: C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (China): 2G: 900/1800MHz 3G: WCDMA: B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
WWAN(Overseas): 2G: 850/900/1800/1900MHz 3G: B1,B2,B4,B5,B8 4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66
WWAN (Others): Depending on the country’s ISP
Bluetooth: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna

Engine: CM2000-1 module based on Impinj Indy R2000
Frequency: 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol: EPC C1 GEN2 / ISO18000-6C
Antenna: Linear polarization(1.8dBi); circular polarization (4dBi)
Power: 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Lati America, etc.)
R/W ranges: ＞7m (linear polarization, outdoors); ＞21m (linear polarization, indoors) ＞10m (circular polarization, outdoors); ＞25m (circular polarization, indoors)
Reading rates (circular polarization): ＞200 tags/s (circular polarization)
Note: *Ranges and rates depend on tags and environment
Note2: *This function is optional

1D Linear Scanner（Quad-core）: Zebra SE965 / Honeywell N4313
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner(Quad-core): Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
2D Imager Scanner(Octa-core): Zebra: SE4750/ SE4750MR
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note: *This function is optional
