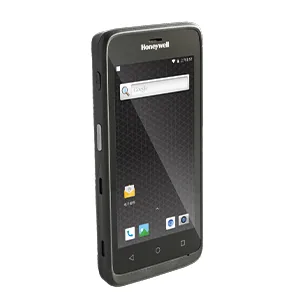

ScanPal EDA51

Comfortable And Easy To Use

ScanPal EDA51

Small and medium-sized retail and service businesses are under pressure as never before to improve customer service, increase productivity, and fulfill omni-channel demands in order to compete with larger organizations. They need advanced technology that will help their mobile workforce get more done in less time and enable them to offer a better customer experience, both face to face and behind the scenes, but at a price that won’t break the budget. The ScanPal EDA51 mobile computer is that tool.

The ScanPal EDA51 can be upgraded through three generations of Android (up to Android Q) and is backward-compatible with ScanPal EDA50 accessories, batteries, and chargers for extended lifecycle, better ROI, and a lower total cost of ownership.

With the fast Qualcomm Snapdragon SDM450 processor and robust wireless connectivity, your workers can access crucial business apps and information from the palm of their hand whenever and wherever they need it – at the customer’s side, on the sales floor, in the back room or loading dock, or on a field service call. The ScanPal EDA51 is lightweight and sleek yet built tough to survive accidental drops and falls. The vivid 5-inch color touchscreen and intuitive interface make it as comfortable and easy to use as a consumer smartphone, creating a short learning curve for workers. The powerful integrated scanner instantly captures barcode data, even on damaged barcodes, while the powerful 13-megapixel auto-focus color camera can be used to document workflow task completion. The long-lasting powerful lithium-ion battery keeps up with your workforce for 12 hours or more.

Mechanical

Weight

272 g (9.59 oz)

Display Size

12.7 cm (5.0 in)

Resolution

1280 x 720 High Definition

Backlight

LED

Touchscreen

Multi-touch capacitive (CTP), GFF

• Dimension 157 mm x 78.2 mm x 16.9 mm (6.18 in x 3.08 in x 0.67 in)

Environmental

Operating Temperature

-10°C to +50°C (+14°F to +122°F)

Storage Temperature

-20°C to +70°C (-4°F to 158°F)

Humidity

10% to 90% (non-condensing)

Drop

Multiple 1.2 m (4 ft) drops to concrete at room temperature

Tumble

300 times at 0.5 m (1.64 ft)

Environmental Sealing

IP64

System Architecture

Processor

Qualcomm Snapdragon SDM450, 1.8 GHz octa-core

Memory

2 GB RAM/16 GB Flash

Operating System

Android 8

Storage Expansion

MicroSDHC (up to 128 GB)

Camera

13-megapixel color camera

Battery

Li-Ion, 3.8 V, 4000 mAh, removable

Charging Time

4.5 hours

Battery

Runtime 12 hours

LED

Battery Status Indicator: red/green/blue Sensors: acceleration sensor, light sensor, and proximity sensor Localization & Language: Worldwide English

• PC Interface Micro USB 2.0
• Real-Time Clock (RTC) 10 min backup via super-cap
• Scan Engine Honeywell N6600 Slim Imager Engine (1D/2D barcode symbologies)

Wireless Connectivity

WLAN IEEE

802.11 a/b/g/n/ac

Security

of WLAN WEP, 802.1x, TKIP, AES, LEAP, PEAPv0, PEAPv1, EAP-M, SCHAPv2, EAP-GTC, EAP-TLS, EAP-TTLS, WPA-PSK, WPA2

Bluetooth

Bluetooth Class 4.2

WWAN

Radio* • GSM/EDGE: Bands 2, 3, 5, 8 • UMTS/HSPA+: Bands 1, 2, 4, 5, 8, 9, 19 • CDMA 1xRTT/EVDO: BC0, BC1, BC6 • FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 19, 20, 26 • TDD-LTE: Bands 38, 39, 40, 41

NFC

Integrated Near Field Communication

GPS

Supported Protocols Simultaneous Receiver Support for GPS, GLONASS, and BeiDou

• * Available outside of the United States
