Honeywell Mobile Computers

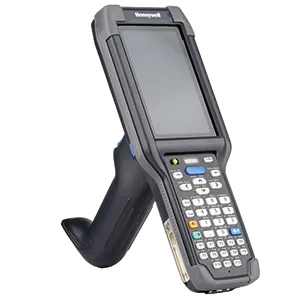

CK65

Name: CK65
Brand: Honeywell

Mobile computer

Built on the Mobility EdgeTM platform, the CK65 minimizes TCO like no other product on the market by future-proofing your investment with support through AndroidTM R and beyond, and accelerated provisioning to minimize your time to value. And with its ultra- rugged design that can withstand 3 m (10 ft) drops to concrete as well as being rated to IP65 and IP68, the CK65 is durable in even the toughest DC environments. The CK65 even offers cold storage models for freezer environments and non-incendive (NI)/ATEX models for areas with hazardous gases.

Honeywell’s legacy of imaging innovation continues on the CK65 with the newest 6803FR FlexRange imager. The 6803FR has a dual-lens architecture that simultaneously captures near, mid, and far range with no moving parts. It’s the ultimate combination of speed, range, and ruggedness. From picking to the pallet to the rack, the 6803FR imager is capable of handling the broadest range of workflows. And without moving parts, there’s no time spent re-focusing, so the 6803FR is always operating at lightning speed.

Download spec sheet Ask about this device Available to rent

Ideal forField services Fleet management Healthcare Logistics Retail Warehousing

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.

Specifications

CK65 at a glance

Mechanical

N6703SR/6803FR Version Dimensions 22.7 cm x 8.3 cm x 4.2 cm (8.9 in x 3.3 in x 1.7 in)
N6703SR/6803FR Version Weight 498 g (17.6 oz) with battery pack
EX20 Version Dimensions 22.7 cm x 8.3 cm x 4.7 cm (8.9 in x 3.3 in x 1.9 in)
EX20 Version Weight 544 g (19.2 oz) with battery pack

Environmental

Operating Temperature Standard Temp Unit: -20°C to 50°C (-4°F to 122°F) Cold Storage Unit : -30°C to 50°C (-22°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 0 to 95% relative humidity (non-condensing)
Drop: 3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range per MIL-STD 810G
Tumble: 2,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification
ESD: ±15 kV Air and ±8 kV Direct
Environmental Sealing: Independently certified to meet IP65 and IP68 standards for moisture and particle intrusion

System Architecture

Scanning Capabilities Honeywell N6703 Slim Imager Engine (1D/2D); 6803FR FlexRange Slim Imager (1D/2D); Honeywell EX20 Near/Far Imager (1D/2D); Honeywell Scanning SDKs for Android

Processor: 2.2 GHz Qualcomm® 64-bit Snapdragon™ octa-core
Operating System: Android 8.0 Oreo (system compatible up to Android R)
Memory: 2 GB/4 GB DDR4 RAM, 32 GB Flash
Display: 10.16 cm (4 in) 480 x 800 bright color LCD with backlight, outdoor readable, optically bonded to touch panel
Touch Panel: Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many off-the-shelf gloves
Keypad: 51-key alpha or 38- or 30-key numeric keypad, plus two programmable side buttons
Audio: Speaker, microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support
I/O: Ports Durable, custom I/O connector compatible with CK3 accessories
Camera: 13.0-megapixel color camera with autofocus and advanced software features for better image quality, f/2.0 aperture, flash LED with flashlight mode
Sensors: Ambient light sensor, accelerometer, gyroscope, hall effect
Storage Expansion: User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Battery: Li-Ion, 7,000 mAh Smart Battery
Hours of Operation: 28 hours
Warranty: One-year limited factory warranty
