Honeywell Mobile Computers

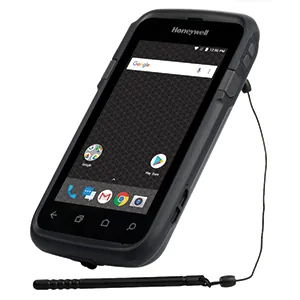

CT60

Name: CT60
Brand: Honeywell

Handheld mobile computer

The Honeywell CT60 mobile computer is designed for enterprises that require anywhere, anytime, real-time connectivity to business- critical applications and fast data capture capabilities in a highly durable, long-lasting form factor built for maximum uptime and productivity out in the field or on the selling floor. Built on the Mobility EdgeTM platform, the CT60 mobile computer offers an integrated, repeatable, and scalable approach based on a common hardware and software platform – unleashing customers from constraints faced today around integration and inflexible technologies without sacrificing enterprise security, reliability, performance, or management features

Download spec sheet Ask about this device Available to rent

Ideal forField services Fleet management Healthcare Logistics Retail Warehousing

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.

Specifications

CT60 at a glance

System Architecture

Processor: 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core
Operating System: Android 8.1 (O), upgradable through Android R
Memory: 3 GB/4 GB DDR4 RAM, 32 GB Flash
Display: 118 mm (4.7 in) High Definition (1280 x 720) bright color LCD with backlight, outdoor readable, optically bonded to touch panel, oleophobic fingerprint rejection
Touch Panel: Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight readability. Automatic switching between glove and finger modes. Water droplet rejection
Keypad: On-screen customizable keypad, dual-action side scan triggers, volume up/down, camera, power button
Audio: Speaker, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support
I/O: Ports Durable, custom IO connector
Camera: 13-megapixel color camera, 4K video with image stabilization, and advanced software features for enhanced exposure control
Sensors: Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, pressure sensor
Storage Expansion: User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Battery: Li-Ion, 3.6 V, 4040 mAh with integrated battery diagnostics
Hours of Operation: 12+ hours
Decode Capabilities: Honeywell N6603SR, N6703SR, or N6703HD Slim Imager Engines (1D/2D barcode symbologies), Honeywell SDKs for Android
Application Software: Honeywell Utilities and Demos
Warranty: One-year factory warranty

Wireless Connectivity

Cellular Radio: LTE Advanced Support Supports VoLTE – Up to 400 Mbps CAT13 LTE downlink – Up to 75 Mbps CAT5 LTE uplink • LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29 • LTE (TDD) – Bands 38, 39, 40, 41 • UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19 • GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz) • 1xRTT/EV-DO (Bands BC0, BC1, BC10 (B26 BW))
WLAN IEEE: 802.11 a/b/g/n/ac; Wi-Fi certified
Additional WLAN Features: 802.11r (802.11k/mc – via future release)
WLAN: Security OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
Supported EAP: TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified
Bluetooth: V5.0 Bluetooth and BLE Supported
Bluetooth Profiles: HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
NFC: Integrated Near Field Communication
VPN: IPSec V4/L2TP, PPTP
Push to Talk (PTT): Supported
GPS: Supported Protocols Simultaneous GNSS Receiver Support for A-GPS, GLONASS, Qualcomm Gen9 position engine, Galileo, and BeiDou

Mechanical

Dimensions: 160 mm x 82.5 mm x 19 mm (6.3 in x 3.2 in x 0.75 in)
Weight: 350 grams (12.4 oz) with battery pack

Environmental

Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 0% to 95% relative humidity (non-condensing)
Drop: 2.4 m (8 ft) to concrete at room temp per MILSTD 810G; 1.5 m (5 ft) to concrete at -10ºC to 50ºC (14ºF to 122ºF) temperature range; 1.2 m (4 ft) to concrete down to -20ºC (-4ºF)
Tumble: Exceeds 1,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification
ESD: ±15 kV Air and ±8 kV Direct
Environmental Sealing: Independently certified to meet IP67 and IP65 standards for moisture and particle intrusion
