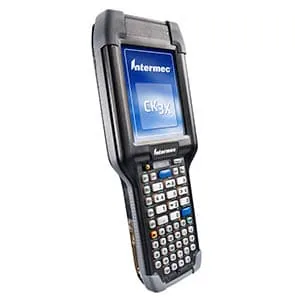

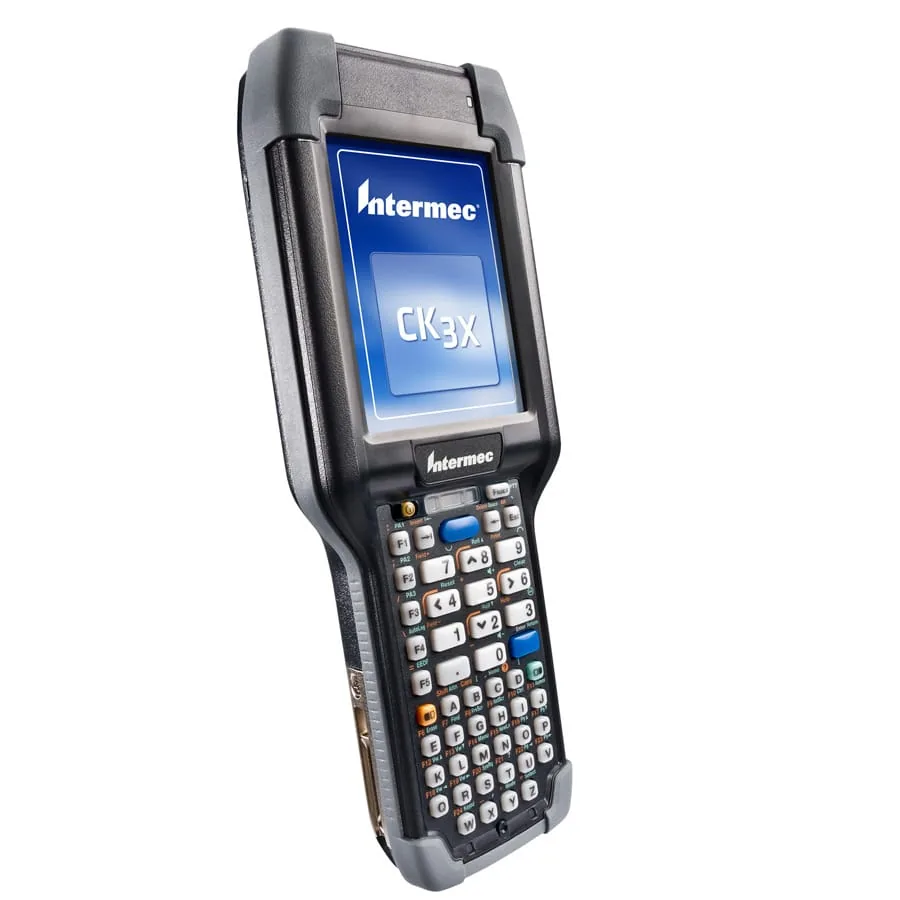

CK3X Handheld Computer

CK3X Handheld Computer

Even better, the CK3X mobile computer comes without the bulk and size of traditional rugged devices in the same class.

Featuring a highly adaptable design, the CK3X computer is supported by an 802.11 a/b/g/n and Bluetooth® wireless technology radio, as well as an optional RFID reader accessory.

HIGH-PERFORMANCE SCANNING

• RUGGED • WIRELESS • LONG BATTERY LIFE • VOICE READY • OPTIMAL RFID READER

ENHANCING THE PERFORMANCE OF YOUR WORKFORCE

With the pace and competitiveness of business today, customers expect accurate orders to be delivered on time and damage-free, every time.

MECHANICAL

Dimensions Length: 21.6 cm (8.53 in) Width: 8.3 cm (3.29 in) 6.1 cm (2.4 in) – grip area Depth: 3.6 cm (1.42 in)

Weight

499 g (17.6 oz) with 5.1Ah battery

ENVIRONMENTAL

Operating Temperature -10°C to +50°C (+14°F to +122°F)

Charging

Temperature +5°C to +35°C (+41°F to +95°F)

Storage Temperature

-20°C to +70°C (-4°F to +158°F)

Humidity

Non-condensing, 95%

Drop

Survival 1.5 m (5 ft) to concrete per MILSTD 810G across operating temperatures

Tumble

Specification 1,000 (1.0 m) tumbles per IEC 60068-2-32 specification

Electrostatic Discharge

+/- 15 kV air discharge, +/- 8 kV direct discharge

SYSTEM ARCHITECTURE

Microprocessor Texas Instruments 1GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Intermec HTML5 Browser (available via download)

Memory and Storage Flash ROM

1GB Flash Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32GB RAM Memory: 256MB RAM

Keypad

Both keypad options feature backlit hard keycaps with laser-etched legends

Power Battery Type/Supply

Battery Pack: Removable, rechargeable

Scanning Performance Scan Engine Options

EA30 high performance motion-tolerant 2D Imager; (up to 500in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mil; 2D as small as 6.6 mils. Refer to User’s Manual for depth of field performance.

EX25 near/far 2D Imager

Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft). Refer to User’s Manual for depth of field performance.

Accessories

Supports most CK3 charging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap on adaptors and removable scan handle.

COMMUNICATIONS INTERFACE

USB – Full Speed 2.0 OTG©, USB – Full Speed 2.0 Client©

Wireless Wireless LAN

IEEE®802.11 a/b/g/n Dual Band WLAN Security: WiFi Certified for WPA and WPA2 Authentication: 802.1x Cisco Compatibility: CCXv4 Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN

Integrated Bluetooth® Class II, Version 2.1+EDR Operating Channels: 0 to 78 (2402-2480 MHz) Data Rates: 1, 2, 3 Mbps Antenna: Internal

• Take your choice of integrated area imagers: standard range scanning or near/far range scanning.
• Unsurpassed scanning performance on 1D and 2D barcodes, even on poor-quality or damaged codes.
• Support for omnidirectional scanning plus very high motion tolerance make it easy for workers to capture an accurate scan and quickly move to the next task.
• Rain and Dust Resistance IP54, category 1
• Display
• 8.9 cm (3.5 in) Transmissive QVGA
• 240 x 320 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Included – User removable, rechargeable Lithium-Ion; 3.7V, 5100 mAh (18.5 Watt-hours)
• Optional – Removable, rechargeable Lithium-Ion; 3.7V, 5200 mAh (18.5 Watt-hours) Smart Pack
• Optional – Removable, rechargeable Lithium-Ion; 3.7V, 2000 mAh (7.4 Watt-hours)
