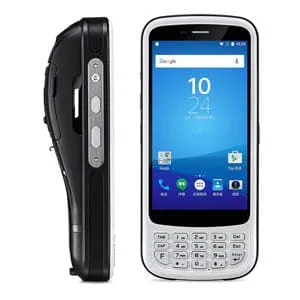

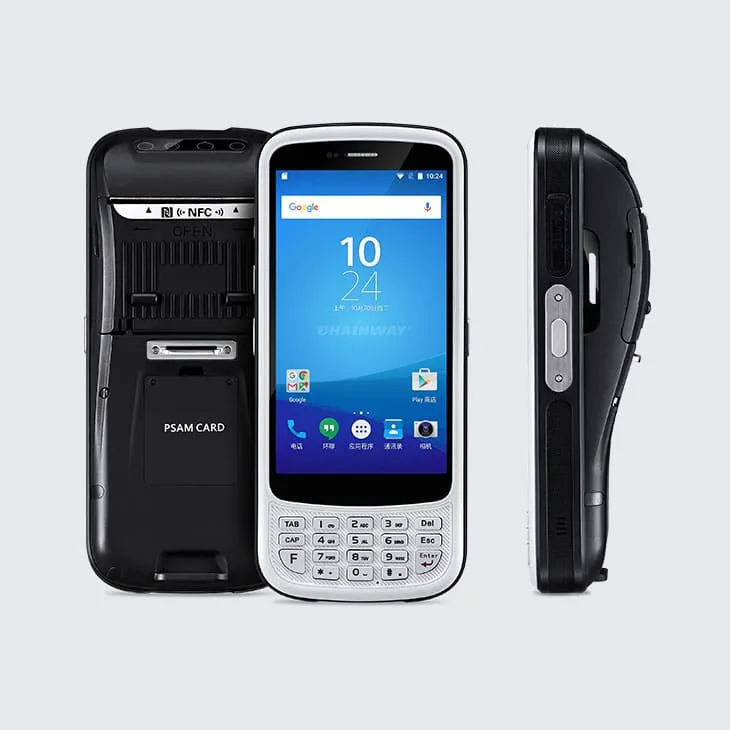

C75 Mobile Computer with Printer

Name: C75 Mobile Computer with Printer
Brand: Chainway

Shining modern body, mobile efficient printing

C75 handheld computer is a two-in-one device for real-time data collection and printing of receipt. The features such as integrated mobile printer and speed data collection make it a preferred device in the market. The built-in dual slots for PSAM cards help in easy encryption of data. The portable design of this device is a perfect combination of multiple tools used for mobility purposes in various sectors like retail, healthcare, parking, etc.

Ask about this device Available to rent

Ideal forField services Fleet management Healthcare Logistics Retail Warehousing

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.

Specifications

C75 Mobile Computer with Printer at a glance

THE ULTIMATE ANDROID ULTRA-RUGGED MOBILE COMPUTER

TWO-IN-ONE DEVICE FOR REAL-TIME DATA COLLECTION: C75 Mobile Computer with Printer

Physical Characteristics

Dimensions: 186.89*83.99*35.04-49.49mm
Weight: 507g/17.88oz
Display: 5.2” IPS FHD 1920x1080P
Touch Panel: Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power: Main battery: Li-ion, rechargeable, 8000mAh
Expansion Slot: 2 PSAM slots at most (ISO7816 protocol), 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces: USB 2.0 Type-C, OTG
Audio: Speaker, 2 microphones
Keypad: 1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard
Sensors: Gravity sensor, light sensor, proximity sensor

User Environment

Operating Temp.: -4°F to 122°F / -20°C to 50°C
Storage Temp.: -40°F to 158°F / -40°C to 70°C
Humidity: 5%RH – 95%RH non condensing
Drop Specification: Multiple 1m/3.28ft drops (at least 20 times) to the concrete across the operating temperature range
ESD: ±15KV air discharge, ±6KV conductive discharge

Developing Environment

Operating System: Android 6.0
SDK: Chainway Software Development Kit
Language: Java
Tool: Eclipse / Android Studio

Performance

CPU: Cortex-A53 Quad-core 1.45GHz
RAM+ROM: 2GB+16GB
Expansion: Supports up to 128 GB Micro SD card

Communication(Quad-core)

WLAN: IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (China): 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Europe): 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America): 2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHz 4G: B2, B4, B7, B12, B17
WWAN (Others): Depending on the country’s ISP
Bluetooth: Bluetooth 4.0, BLE
GNSS: GPS/AGPS, GLONASS, BeiDou; internal antenna
Note: C75 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Barcode Scanning

1D Linear Scanner: Zebra SE965 / Honeywell N4313
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner: Zebra SE4710 /Honeywell N6603
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note: *This function is optional
