Honeywell Readers & Scanners

Voyager Extreme Performance

Name: Voyager Extreme Performance
Brand: Honeywell

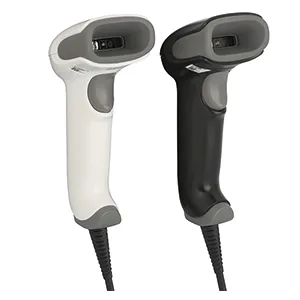

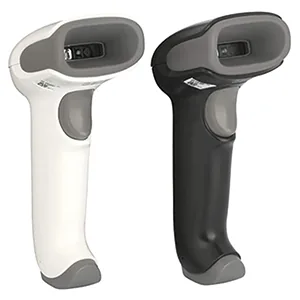

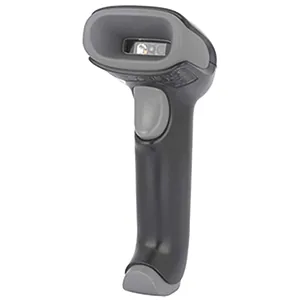

Durable, highly accurate cordless 2d scanner

Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the VoyagerTM Extreme Performance (XP) 1472g cordless scanner delivers industry- leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.

Download spec sheet Ask about this device Available to rent

Ideal forField services Fleet management Healthcare Logistics Retail Warehousing

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.

Specifications

Voyager Extreme Performance at a glance

WIRELESS: Radio/Range: 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2 30 m (98 ft) line of sight with Honeywell charger/communication base
Power Options: Battery: 2400 mAh Li-ion minimum Number of Scans: Up to 50,000 scans per charge Expected Duration of Operation: 14 hours Expected Charge Time: 4.5 hours
User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)
Dimensions(LxWxH): 62mmx173mmx 82mm(2.5inx6.8inx3.2in) Charger/Communication Base: (CCB01- 010BT-V1N) 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in) Scanner Weight: 210 g (7.4 oz) Charger/Communication Base: 179 g (6.3 oz) Operating Power (Charging): Charger/ Communication Base: 179 g (6.3 oz) Standby Power: Charger/Communication Base: 0.5 W (0.1A @ 5V) Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)
Storage Temperature: Scanner: -40°C to 60°C (-40°F to 140°F) Charger/Communication Base: -40°C to 70°C (-40°F to 158°F)
Electrostatic Discharge: (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air Humidity: 0% to 95% relative humidity, non-condensing Tumble Spec: 1,000 0.5 m (1.6 ft) tumbles (impacts) Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete Environmental Sealing: IP42 Light Levels: 0 to 100,000 lux (9,290 foot-candles)
SCAN PERFORMANCE: Scan Pattern: Area Image (1040 x 720 pixel array) Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Scan Angle: Horizontal: 39.2° nominal Vertical: 27.4° nominal
Roll, Pitch, Skew: ±180°, ±65°, ±70°
Barcode Types: Reads standard 1D, PDF, 2D, and DotCode symbologies Note: Decode capabilities dependent on configuration.
Warranty: 3-year factory warranty
ENVIRONMENTAL: Operating Temperature:
Scanner: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (23°F to 122°F)
Charger/Communication Base: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (32°F to 122°F)
