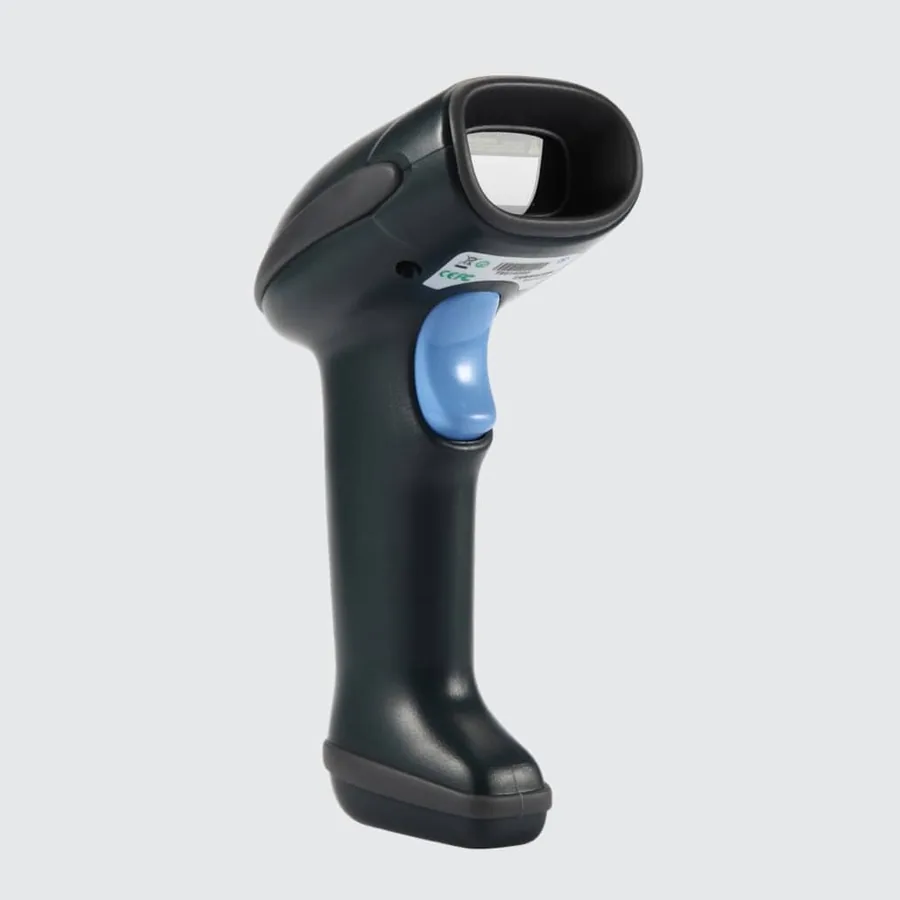

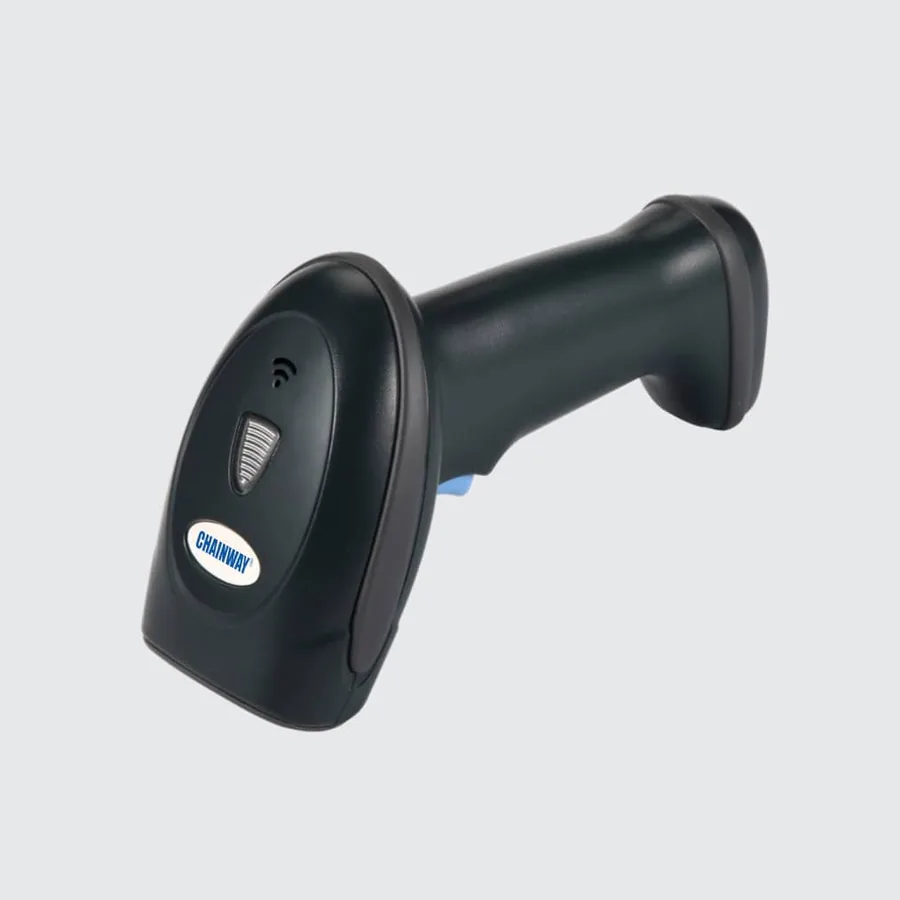

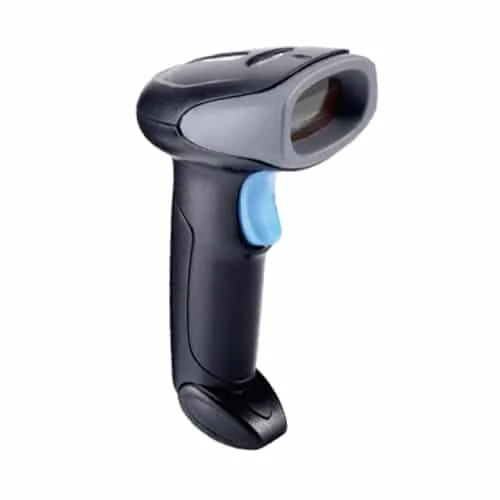

C20 Optical Image Scanner
Industrial 2D Scanner
C20 is an industrial 2D optical imaging scanner with advanced data capture capabilities. The device delivers industrial leading performance and durability in retail, logistics, healthcare, manufacturing, office automation and other fields of applications. It features optical system, coupling system, graphics digital, decoding image processing, embedded system and a series of technologies. It is quite easy for C20 to scan QR Code, DataMatrix, PDF417, Aztec, Maxicode and so on.
Backed by ITSSA CareRepairs, hot swops and support for the life of the device.
Specifications
C20 Optical Image Scanner at a glance
C20 Optical Image Scanner
- Performance Parameter Light Source Aiming
- 630 ±10 nm Image (Pixels): 752 pixels (H) x 480 pixels (V) Field of View: 40° (H) x 26° (V) Roll / Pitch / Yaw: 360°, ±55°, ±60° Print Contrast: 25% minimum reflective difference
- Symbology Decode Capability 1-D
- EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39 (Code 39 FULL ASCII), Code 11, MSI-Plessey, Plessey 2-D: PDF417, DataMatrix, QR Decoding rate: 350 times/s Interfaces: USB, Rs232, USB-COM
- Physical Characteristics Dimensions
- 102mm x 73mm x 182 mm Weight: 172g Voltage and Current: 5 VDC +/-10% @ 160 mA
- User Environment Operating Temp
- -20° to 60°C Storage Temp: -40° to 85°C Humidity: 5% to 95%, non-condensing Drop Specification: Withstands multiple 3m drops to concrete Ambient Light Immunity: Immune to normal indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux. Sealing: IP54 grade
C20 Optical Image Scanner
Industrial 2D Scanner
C20 is an industrial 2D optical imaging scanner with advanced data capture capabilities. The device delivers industrial leading performance and durability in retail, logistics, healthcare, manufacturing, office automation and other fields of applications. It features optical system, coupling system, graphics digital, decoding image processing, embedded system and a series of technologies. It is quite easy for C20 to scan QR Code, DataMatrix, PDF417, Aztec, Maxicode and so on.
- Performance Parameter Light Source Aiming
- 630 ±10 nm Image (Pixels): 752 pixels (H) x 480 pixels (V) Field of View: 40° (H) x 26° (V) Roll / Pitch / Yaw: 360°, ±55°, ±60° Print Contrast: 25% minimum reflective difference
- Symbology Decode Capability 1-D
- EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39 (Code 39 FULL ASCII), Code 11, MSI-Plessey, Plessey 2-D: PDF417, DataMatrix, QR Decoding rate: 350 times/s Interfaces: USB, Rs232, USB-COM
- Physical Characteristics Dimensions
- 102mm x 73mm x 182 mm Weight: 172g Voltage and Current: 5 VDC +/-10% @ 160 mA
- User Environment Operating Temp
- -20° to 60°C Storage Temp: -40° to 85°C Humidity: 5% to 95%, non-condensing Drop Specification: Withstands multiple 3m drops to concrete Ambient Light Immunity: Immune to normal indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux. Sealing: IP54 grade
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
