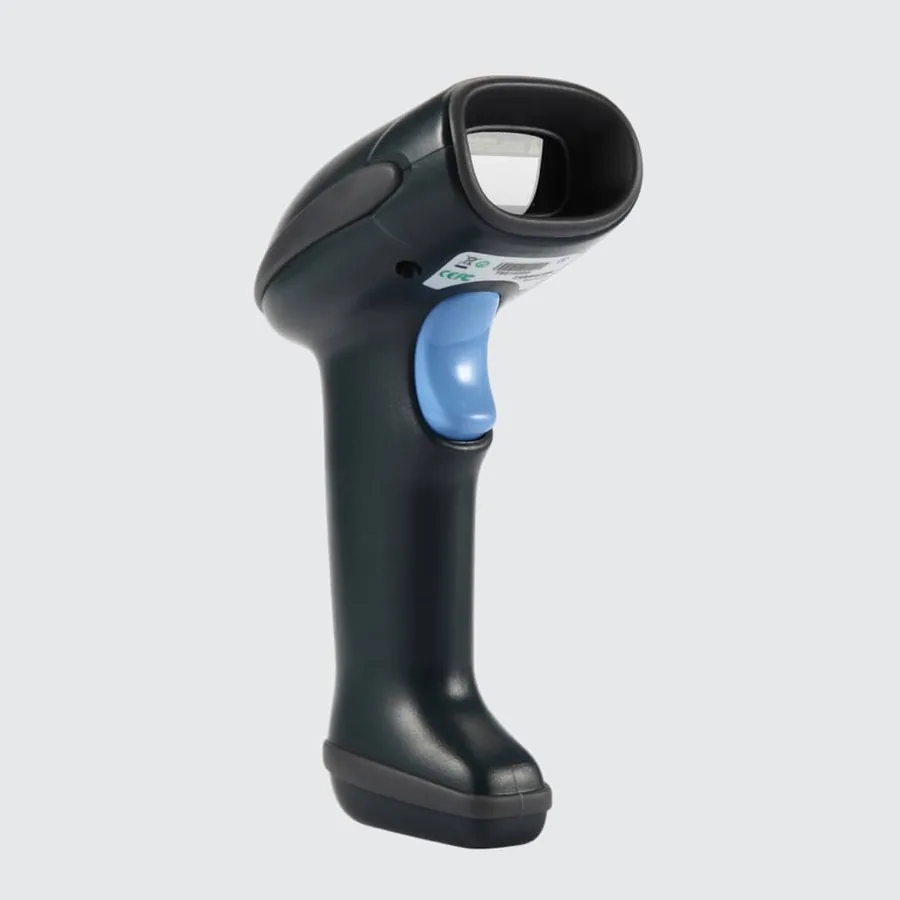

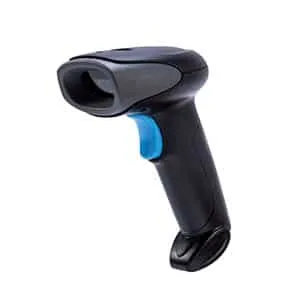

CB20 Cordless BT Scanner
CMOS Image Sensor Plus Bluetooth, Ultra-strong Compatibility With No Wires
CB20 adopts CMOS image sensor and Bluetooth, providing ultra-strong compatibility and cordless freedom. It can be seamlessly paired with any Android, Apple iOS, or Windows smartphone or tablet, and is widely used in supermarket, chain stores, shops, clothing store, electronic ticket and coupon scanning, mobile payment and tax affairs. The device delivers industrial leading performance and durability in retail, commercial, bank, financial, etc.
Backed by ITSSA CareRepairs, hot swops and support for the life of the device.
Specifications
CB20 Cordless BT Scanner at a glance
CB20 Cordless BT Scanner
Industrial 2D Image Wireless Scanner
- BLUETOOTH
- • COMFORTABLE HANDLE • IP54 SEALING • LONG SERVICE LIFE • RESPONSIVE PERFORMANCE
Performance Parameter
- Light Source
- White LED (6500K)
- Image Sensor
- CMOS (image based)
- Decoding Rate
- 300 times/s
- Decoding Capabilities
- 1D: EAN-13 (Available with verification codes), EAN-8 (Available with verification codes), UPC-A (Available with verification codes), UPC-E (Available with verification codes), ISSN, ISBN, Codabar, Code 128 (including FNC1, FNC2 and FNC3 subsets), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSSExpand, RSS-Limited, RSS-14 ) Code 39 (including Code 39 FULL ASCII), Code 11, MSI-Plessey, Plessey, etc. 2D: PDF417,DataMatrix,QR code, etc.
- Angle
- ±42°, ±65°, ±65° Roll, skew, pitch
- Resolution
- 4mil
- Depth of Field
- 40mm – 350mm
- Printing Contrast
- 30%
- Prompting Mode
- Buzzer, LED indicator
- Interface
- Built-in USB, PS2 keyboard, RS-232 serial port, USBCOM can be identified automatically
- Trigger Mode
- Manual, continuous automatic scanning; auto sensing (optional)
- Setting Mode
- Scan and set up barcode (including e-document)
- Frequency
- 2400MHZ
- Communication Distance
- 70m (in open space)
- Transmission Rate
- 1Mbps
- Current
- 200mA (operation); 90mA (standby); DC 5V ± 0.25V (charging)
- Capability of Battery
- 2200mAh; charging time: 4.5h
Physical Characteristics
- Dimensions
- LXWXH (120 x 71 x 176mm)
- Weight
- Approximately 187g (including the batteries and excluding the wires)
- Material
- ABS+PC (environment-friendly material)
User Environment
- Operating Temp.
- 0°C – 45°C
- Storage Temp.
- – 40°C – 60°C
- Drop Specification
- Withstand multiple drops from a height of 3m to a concrete floor
- Sealing
- IP54 grade
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
