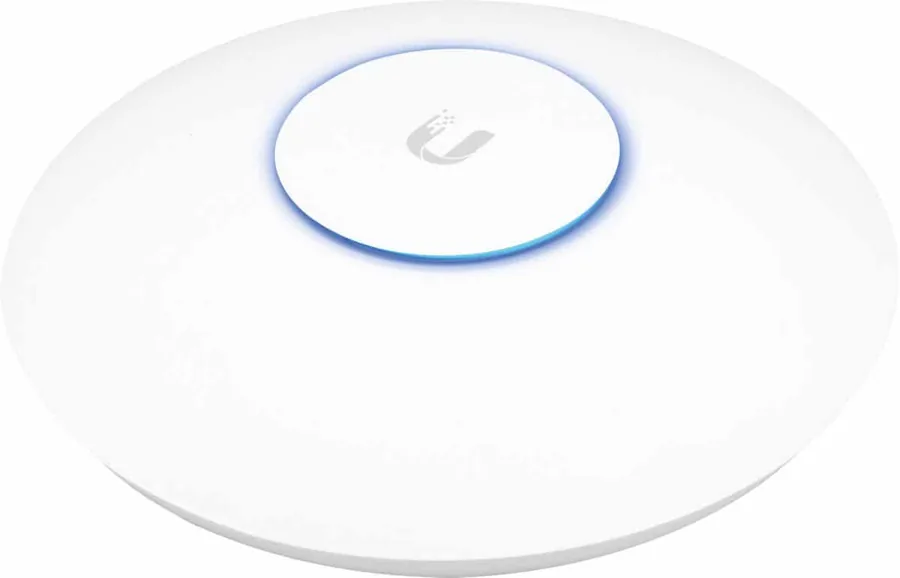

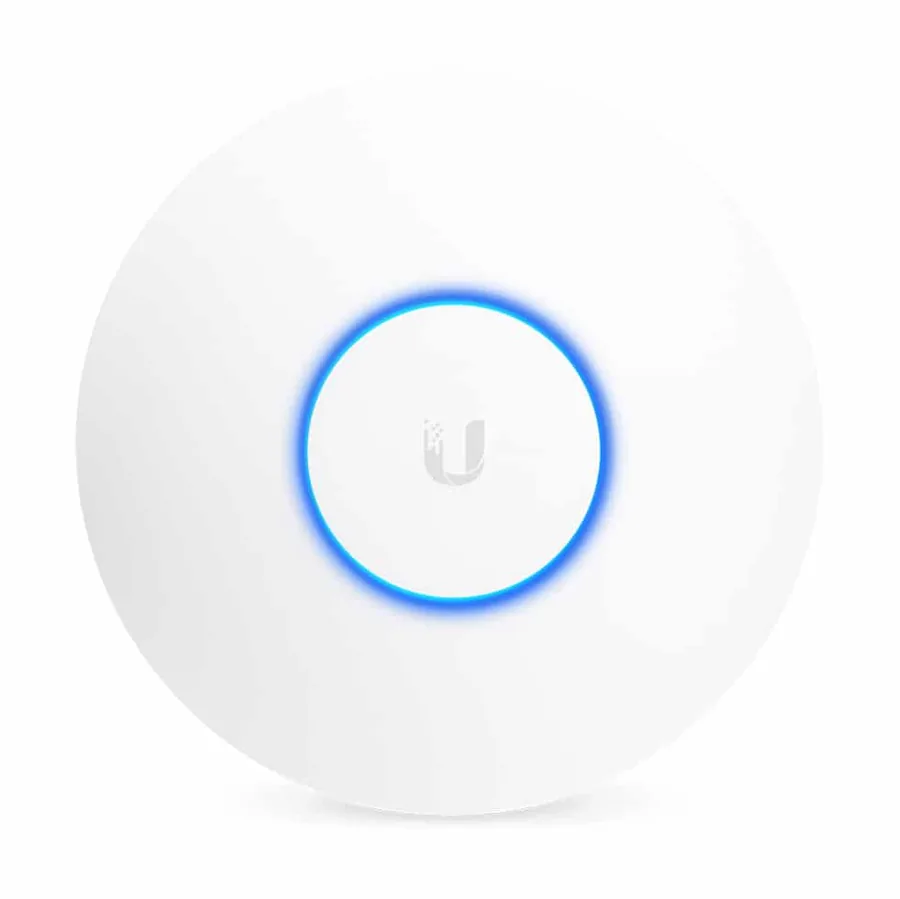

UniFi HD
802.11ac wave 2 enterprise wi-fi access point
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi HD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser and the UniFi app (iOS or AndroidTM), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save Money and Save Time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware The UniFi HD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.
Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.
Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a five‐pack) and expand to thousands while maintaining a single unified management system.
UniFi HD at a glance
UniFi HD
- Dimensions
- 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89″)
- Weight With Mounting Kits
- 700 g (1.54 lb) 830 g (1.83 lb)
- Networking Interface
- (2) 10/100/1000 Ethernet Ports
- Buttons
- Reset
- Power Method
- 802.3at PoE+
- Supported Voltage Range
- 44 to 57VDC
- Power Supply
- UniFi Switch (PoE)
- Power Save
- Supported
- Beamforming
- Supported
- Maximum Power Consumption
- 17W
- TX Power 2.4 GHz 5 GHz
- 6-25 dBm 6-25 dBm
- Antennas 2.4 GHz 5 GHz
- (2) Dual-Port, Dual-Polarity Antennas, 3 dBi each (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each
- Wi-Fi Standards
- 802.11 a/b/g/n/r/k/v/ac/ac-wave2
- Wireless Security
- WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
- BSSID
- Up to 8 per Radio
- Mounting
- Wall/Ceiling (Kits Included)
- Operating Temperature
- -10 to 70° C (14 to 158° F)
- Operating Humidity
- 5 to 95% Noncondensing
- Certifications
- CE, FCC, IC
Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
