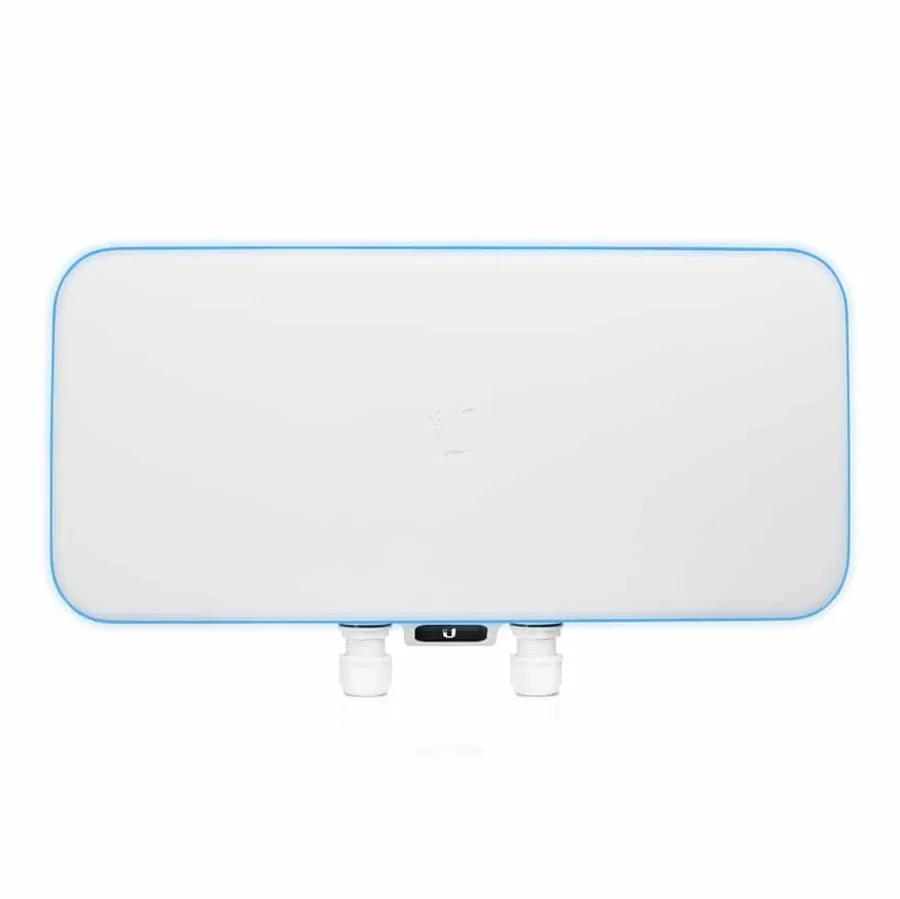

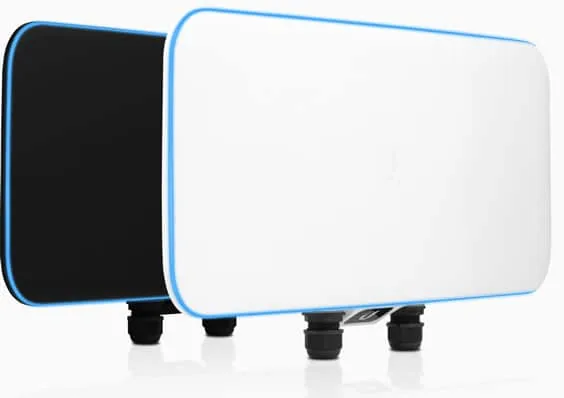

BaseStation XG

The world’s highest capacity wi-fi ap

The UniFi® Ecosystem enables the system integrator to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability.

The built-in, dedicated security and monitoring radio of the UniFi WiFi BaseStation XG provides visibility into site performance, channel planning, and local interferers, allowing the integrator to properly evaluate performance and quickly respond to changing interference and security threat landscapes.

Easily accessible through any standard web browser and the UniFi app (iOS or AndroidTM), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Powerful Hardware The UniFi WiFi BaseStation XG features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology combined with dedicated security and Bluetooth radios.

Intuitive UniFi Controller Software The system integrator can leverage the controller to easily configure and administer an enterprise Wi-Fi network.

Expandable The system integrator can start with one and expand to thousands while maintaining a single unified management system.

Save Money and Save Time UniFi comes bundled with a software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.
Specifications

BaseStation XG at a glance

UWB-XG, UWB-XG-BK

Dimensions (Without Mount)
471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713″)
Weight (Without Mount)
3.2 kg (7.055 lb)
Networking Interface
(1) 10/100/1000 RJ45 Ethernet Port (1) 1/10 Gbps ICM Ethernet Port
Button
Reset
LED
RGB, Software-Controllable
Power Method
802.3bt PoE
Power Supply
50VDC, 1.2A Gigabit PoE
Power Save
Supported
Beamforming
Supported
Max. Power Consumption
31W
Supported Voltage Range
44-57VDC
Max. TX Power
25 dBm
MIMO
(3) 4 x 4
Operating Frequency
5 GHz
Antenna
Integrated Dual-Mode Antenna Array
Antenna Gain Small Cell Large Cell
15 dBi 10 dBi
Antenna Beamwidth Small Cell Large Cell
50° 90°
Wi-Fi Standards
802.11 a/n/r/k/v/ac/ac-wave2
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
Mounting
VESA-Compatible Mount, Pole/Wall (Brackets Included)
Operating Temperature
-10 to 70° C (14 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Dust and Water Resistance
IP67
Certifications
CE, FCC, IC

Advanced Traffic Management

VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
1500

Supported Data Rates (Mbps)

Standard
Data Rates
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
