Datalogic Mobile Computers

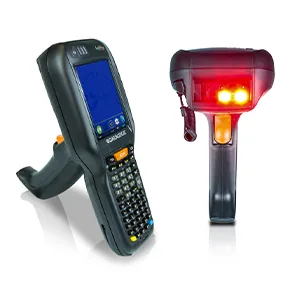

Falcon X4

Real-time data capture and communications

Leveraging well-known ergonomics and the elegant design of the Falcon product line, the Falcon X4 mobile computer represents the next generation of Datalogic’s flagship product. The Falcon X4 mobile computer is ideal for both Retail and Logistics applications both on the store floor and in the back office/warehouse.

Datalogic core technologies for data capture enable top scanning performance in reading any kind of 1D and 2D codes. The new Auto Range 2D imager scans from near to extremely far distances. Communicate over a superior TI 802.11 a/b/g/n radio with CCX v4 compliance and MIMO antenna technology for improved connectivity and coverage, or through wired standards including USB Hi-Speed, RS-232, Modem and Ethernet. Bluetooth® v4 provides support for the new low energy mode (BLE) and for improved voice recognition via wide band audio on Android models.

The Falcon X4 mobile computer is fully compatible with previous Falcon X3+ accessories and with most any existing CE applications. The Falcon X4 mobile computer represents full protection for past investments of our end users and partners, but it also enables a new path to innovation and to the recent industry trends with the Android™ version (also upgradable from Windows® WEC7 models).

The new Auto Range scanning capability allows the Falcon X4 to scan up to 15.0 m / 49.2 ft while providing superior performance and user experience of Datalogic scanning technology.

Backed by ITSSA CareRepairs, hot swops and support for the life of the device.
Specifications

Falcon X4 at a glance

CPU Speed
1GHz TI OMAP4
OS
Windows Embedded Compact 7 or Android 4.4
RAM/ROM
1GB RAM/8GB Flash
Card slots
1 MicroSD (SDHC compatible, up to 32GB)
Display type
Reflective daylight-readable TFT with Gorilla Glass 3
Display size/res
3.5″/240 x 320 pixel (114 ppi)
Digitizer/pens
touch/1
Keyboard/keys
29-key numeric or 52-key alpha-numeric keypads with polycarbonate hard caps
Navigation
Directional control, triggers
Housing
Industrial polycarbonate/ABS-blend plastic shell with thermoplastic urethane overmold
Operating Temp
-4° to 122°F (-20° to 50°C)
Sealing
IP65
Shock
Drops from 6 feet to concrete (IEC68-2-32, Method 1)
Tumble
1,500 tumbles from 3.,3 feet (IEC68-2-32, Method 2)
Size (WxHxD)
3.5 x 8.9 x 2.2 inches (88 x 225 x 55 mm) w/o pistol grip
Weight
21.2 ounces (23.6 ounces with pistol grip)
Power
Li-Ion 3.7V, 5,200mAh (19.2 watt-hours)
Interface
USB 2.0 host and client, RS232, Ethernet via single slot dock, audio, dock
Scanning
Either high performance laser, long range laser, standard-range 1D/2D imager, or extra long range 1D/2D imager
Wireless
802.11a/b/g/n, Class 2 Bluetooth 2.1 + EDR (Android has Bluetooth 4.0 BLE)

Specifications are supplied by the manufacturer and can change. Our team will confirm the exact configuration with your quote.
