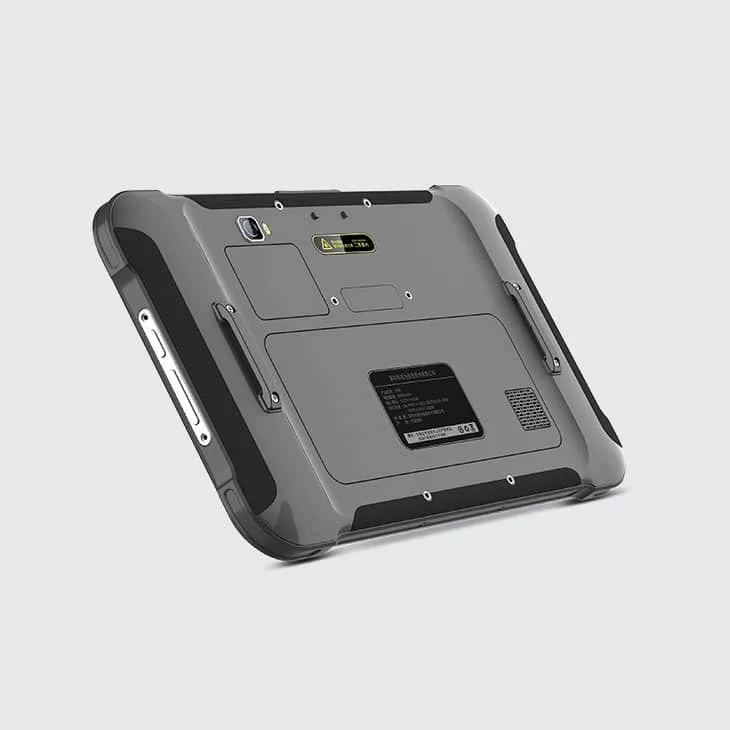

P80 Optical Fingerprint Tablet

P80 Optical Fingerprint Tablet

This is an Android 7.1.2 rugged tablet with abundant functions . With its powerful Qualcomm CPU, 3rd generation corning gorilla 8 inch corning high-definition screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID/NFC, Iris and fingerprint recognition, etc. You can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.

HIGH PERFORMANCE CPU

• POWERFUL BATTERY • INDUSTRY LEADING SCAN ENGINE

Physical Characteristics

Dimensions

250.8mm x 152mm x 15mm/ 9.87 x 5.98 x 0.59in(for standard version)

Weight

700g/24.7oz(for standard version)

Display

8” IPS LTPS 1920×1200

Touch Panel

Corning Gorilla Glass 3, multi-touch panel, gloves and w et hands supported

Power

Main battery: Li-ion, rechargeable, 8000mAh Standby: over 500 hours Continuous use: over 10 hours (depending on user environment) Charging time: 5-7 hours (with standard AC adaptor and USB cable)

Expansion Slot

1 slot for SIM card, 1 slot for TF card, Optional PSAM card slot

Interfaces

USB 3.0 Type-C, OTG

Audio

Speaker, microphone

Keypad

1 front key, 1 volume key, 1 power key

Sensors

Gravity sensor

User Environment

Operating Temp.

-4oF to 122oF / -20oC to 50oC

Storage Temp.

-40oF to 158oF / -40oC to 70oC

Humidity

5%RH – 95%RH non condensing

Drop Specification

Multiple 1.5m/4.9ft drops to concrete across the operating temperature range

Tumble Specification

500 x 0.5m/1.64ft falls at room temperature

Sealing

IP 65. Complete protection against contact (dust tight). Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful eddects.

ESD

±15KV air discharge, ±8KV conductive discharge

Developing Environment

Operating System

Android 7.1.2

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

MSM8953 2.0GHz Octa-core

RAM+ROM

2GB+16GB

Expansion

Supports up to 128GB Micro SD card

Communication

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

WWAN

2G: 850/900/1800/1900MHz, GPRS, EDGE 3G: CDMA EVDO:BC0 TD-SCADMA: B34/B39 WCDMA: B1/B2/B5/B8 4G: TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28

WWAN (Others)

Depending on the country’s ISP

Bluetooth

Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR

GNSS

GPS/AGPS, GLONASS, BeiDou, internal antenna

Fingerprint

Sensor

Optical Morpho CBM-E3

Sensing Area (mm)

14×22

Resolution (dpi)

500 dpi, 256 greylevel

Certifications

FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC

Format Extraction

ISO 19794-2/4

Security

FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.

Fake Finger Detection

Yes

PSAM

Protocol

ISO7816

Slots

2 PSAM card slot

Note

*This function is optional

InfraRed

Wavelength

940nm

Frequency

38kHz

Range

>4m

Protocol

DLT_645-2007, DLT_645-1997

Note

*This function is optional

Barcode Scanning

Scan engine

Zebra SE4710 (standard), Zebra SE4850 (optional)

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.

Camera

Front Camera

8MP

Rear Camera

13MP Autofocus with flash

NFC

Frequency

13.56MHz

Iris Recognition

Rate

<150ms

Range

20-40cm

FAR

1/10000000

Note

Protocol：ISO/IEC 19794-6，GB/T 20979-2007

Note2

* This function is optional. * Front Iris
